Epicor CADLink CAD ERP Integration Vantage Vista

Integrate and Sync your CAD Data with Epicor CADLink

CADLink allows engineers to create Epicor Item Master and BOM records identical to engineering CAD data with the click of a button. The direct integration reduces manual data entry and clerical errors. Production benefits from drawing information identical to work order documentation.

Increase the speed of data flow from sales to engineering, procurement, and manufacturing. Streamlining the entire product development process by integrating your CAD system and your Epicor ERP solution gives you the edge in the competitive market. This eliminates all the burdens you face from having disparate systems, allowing engineers to focus on the designs and innovation.

Keeping your Epicor engineering data accurate and synchronized with your engineering drawings and models is critical.

With CADLink, you will see significant improvements in production speed, on-time shipments, and accuracy of Epicor engineering data with reductions in engineering cost, scrapped parts, and shop floor confusions.

Epicor Alliance Partner White CADLink QBuild

Assign essential Epicor ERP fields such as Product Code, UOM, and Part Type using ERP drop-down menus in Epicor CADLink.

Direct CAD Integration

Real-time, direct, two-way link between your CAD and your Epicor ERP means no more exporting or importing of data files. Launch directly from the CAD suite of your choice.

Interface for indented multi-level Bill of Materials and thumbnail preview image of the CAD part lets you know what you are looking at.

Live Data Comparison

  • Live comparison lets you visually review BOM changes before committing to save.
  • Create ERP Item and BOM records identical to your drawings in one click.

Bi-Directional Data Push

Bi-directional data push keeps your CAD and Epicor ERP engineering data synchronized and up-to-date. Critical information such as part quantity and material selection will be kept consistent throughout your CAD and Epicor ERP systems.

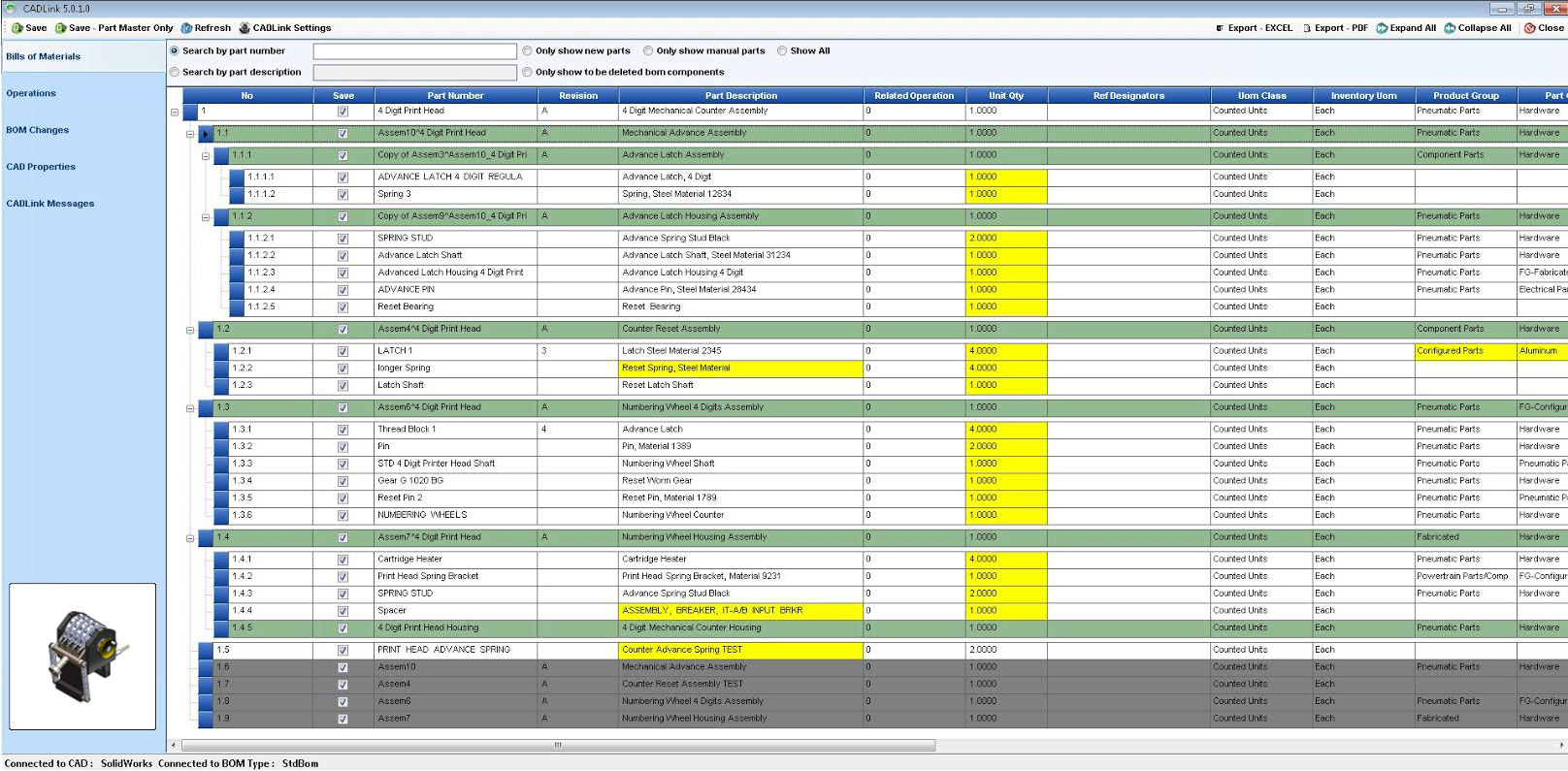

Epicor CADLink Interface

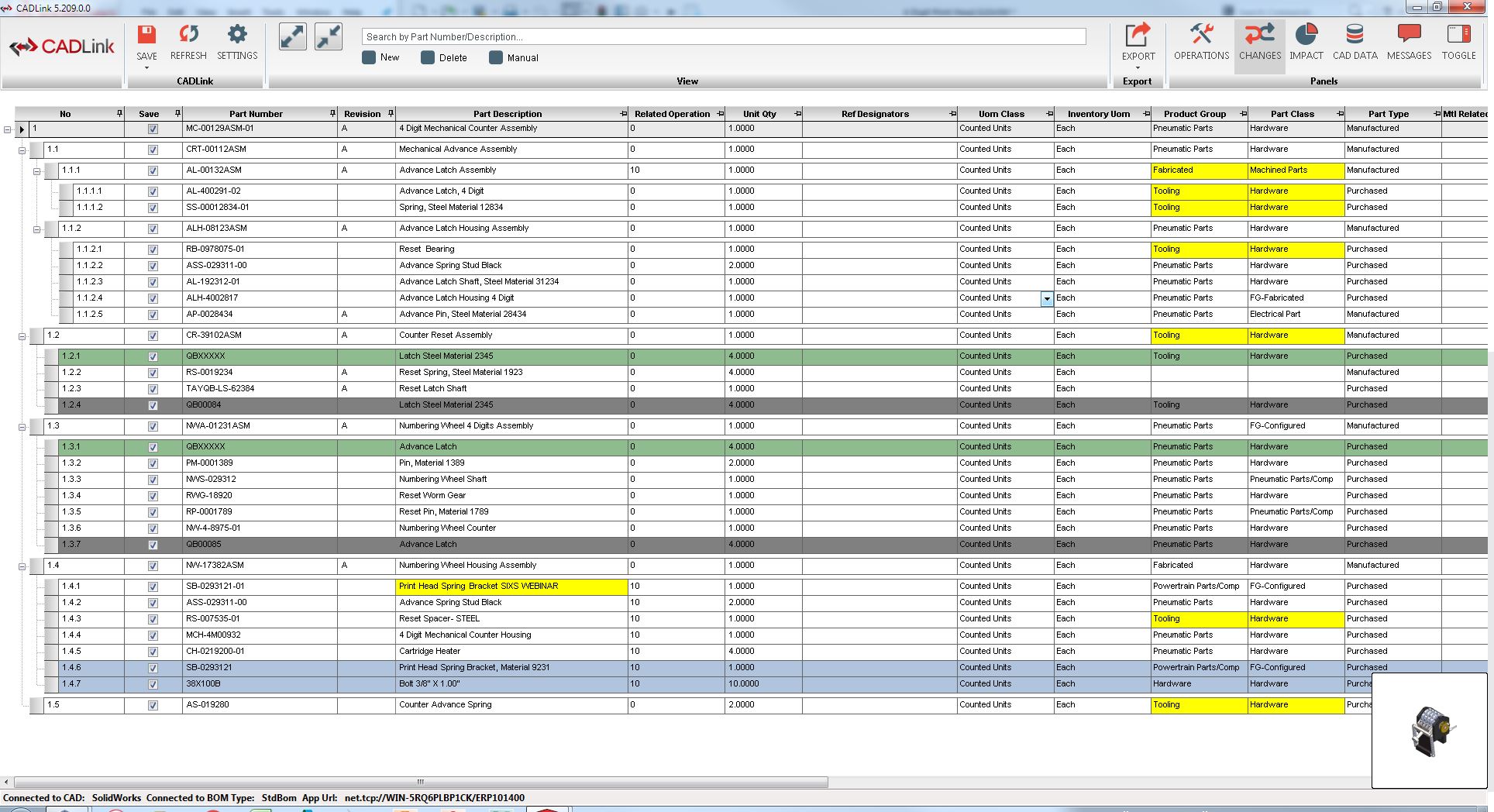

CADLink for Epicor - BOM Bill of Materials Grid

Epicor CADLink Features

Powerful Visual Interface

Powerful Visual Interface

CADLink offers an intuitive and highly visual interface to display data discrepancies. BOM quantity changes and updates are displayed in change summary tab.

Discrepancy and Error Notification

Discrepancy and Error Notification

Resolve discrepancies in the CADLink interface and automatically update both your CAD files and Epicor ERP data. CADLink checks for critical errors and notifies the user before saving.

Quick and Easy Routing Interface

Quick and Easy Routing Interface

CADLink offers a simple interface for creating and assigning ERP operations on your BOM.

Color Coded Changes

Green fields represent new parts that will be created in Epicor ERP.

Yellow fields highlight data discrepancy between CAD and Epicor ERP such as description or quantity.

Gray fields represent parts to be removed from your BOM.

Eliminate Duplicate Manual Data Entries

Eliminate Duplicate Manual Data Entries

Single-step process eliminates duplicate manual data entries of engineering data.

One Click Summary Report

One Click Summary Report

Easily generate PDF Bill of Material. Change summary report and export Bill of Material in an Excel file format to meet your documentation requirements.

Powerful<br />
Searches

Powerful
Searches

Search your Epicor ERP Item Master live and insert raw material items to your BOM. Search and insert non-CAD items to your Epicor BOM to create a complete BOM; not just what you modeled.

Small<br />
Footprint

Small
Footprint

CADLink offers an easy installation and setup, and small footprint with minimum client machine hardware and software requirement. CADLink installation requires no additional database or server components.
