Seamlessly synchronize your CAD and SYSPRO ERP Bill of Materials in one click.

CADLink Bidirectional CAD Syspro BOM Sync Tool

Eliminate manual data entry and clerical errors by using CADLink. CADLink automates BOM data transfer from your CAD model, pulling information to create structures and routings in SYSPRO.

Connect your engineers and designers to your SYSPRO ERP by empowering them with CADLink. Where engineers may spend hours manually typing data into SYSPRO, CADLink can accomplish the work in seconds, allowing them to focus on real design work. Using CADLink will streamline your process, making your engineering team more efficient, and gives you the edge in a competitive market.

Keeping your SYSPRO engineering data accurate and synchronized with your engineering drawings and models is critical to the growth and success of your business!

CADLink can create new stock codes, resolve discrepancies, and create Bill of Materials, at the click of a button. Non-stock codes can also be created for your Estimates in SYSPRO ERP.

Direct CAD Integration

Integrations for all the leading mechanical and electrical CAD systems from Solidworks, AutoDesk, PTC and more. Interface for the indented multi-level Bill of Materials and thumbnail preview image of the CAD parts lets you know what you are looking at.

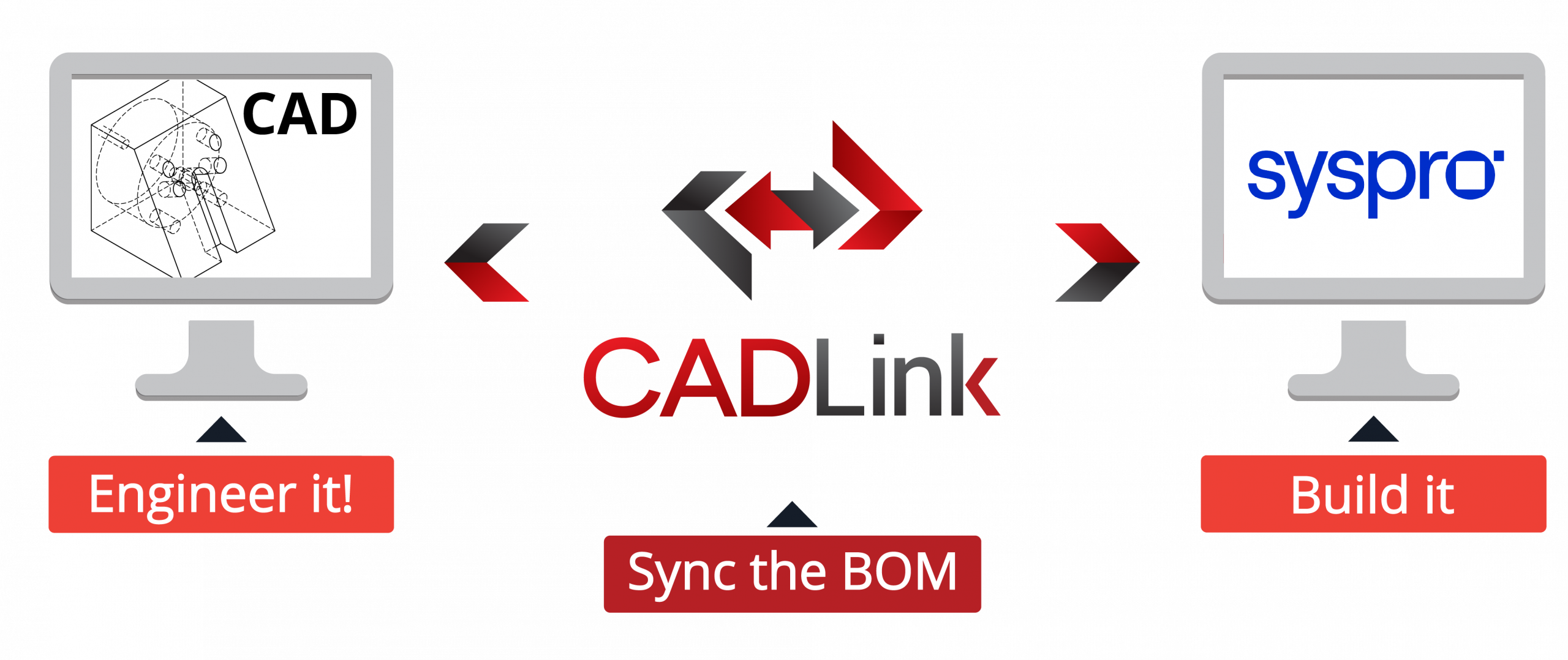

Bi-Directional Connection

Bi-directional data push keeps your CAD and SYSPRO ERP engineering data synchronized and up-to-date. Keep critical information such as your BOM quantity and raw material information consistent throughout your CAD and SYSPRO systems.

Direct Integration with SYSPRO ERP

Instantly assign critical fields such as Alternate Code and Commodity Code. Access data directly from SYSPRO to increase ERP visibility to your engineers. Verify the integrity of your data and simplify your workflow in one interface.

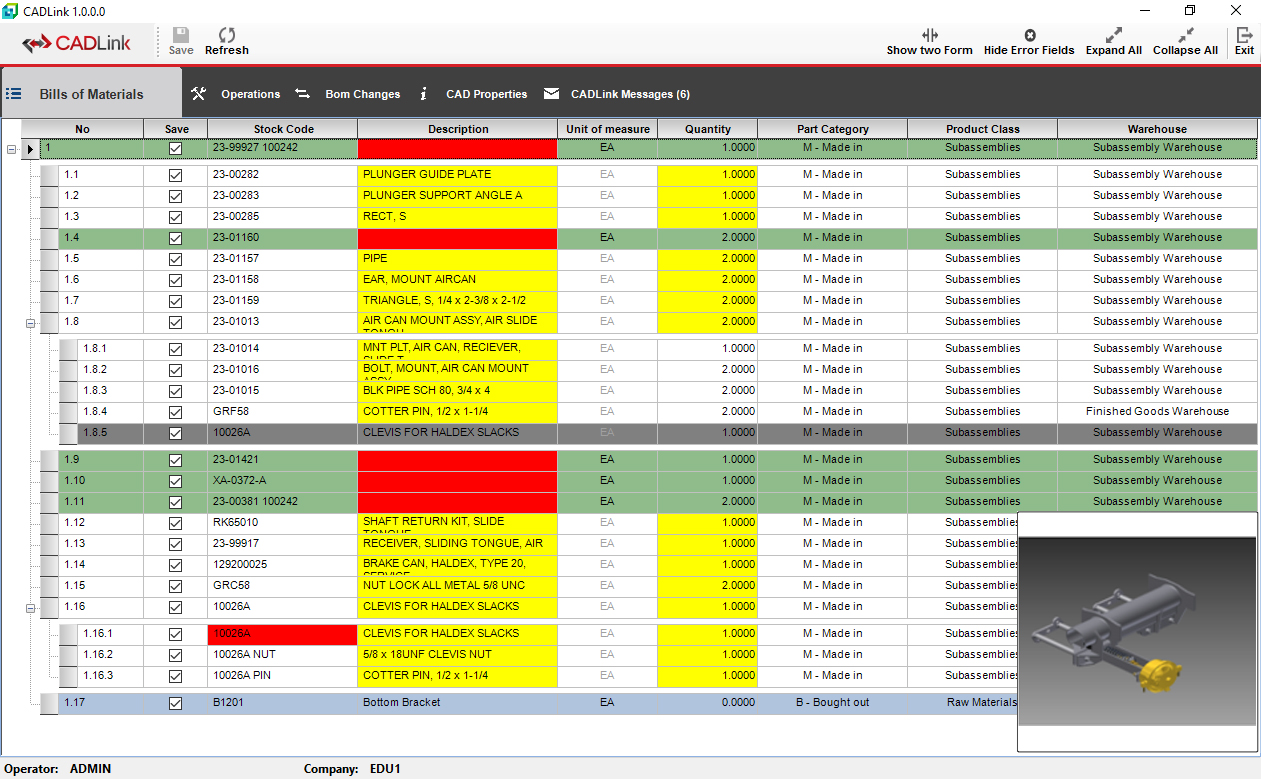

CADLink Interface

Color Coded BOM Discrepancies

Green Rows represent new stock codes that will be created in your Item Master.

Yellow fields highlight a field level discrepancy between CAD and SYSPRO Structure/Estimate such as description or quantity.

Gray Rows represent stock codes to be removed from your BOM.

Blue Rows represent flagged stock codes in your SYSPRO Structure/Estimate that are not in your CAD model.

Red Fields highlight the fields where there is a critical error that must be resolved.

CADLink for SYSPRO Features

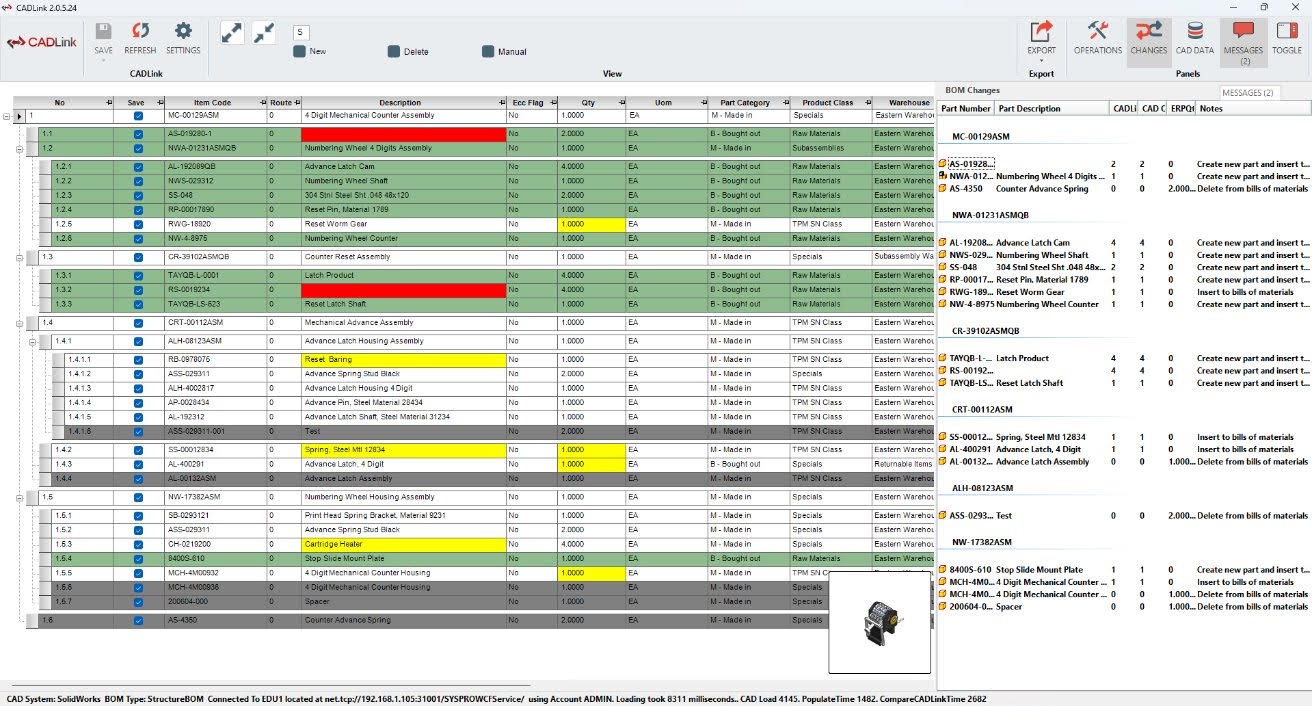

Powerful Visual Interface

Powerful Visual Interface

CADLink offers a highly intuitive and visual interface to display data discrepancies. BOM quantity changes and updates are displayed in a change summary tab.

Discrepancy and Error Notifications

Discrepancy and Error Notifications

Resolve discrepancies in the CADLink interface and automatically update both your CAD files and SYSPRO ERP data. CADLink checks for critical errors and notifies the user before saving.

Quick and Easy Routings

Quick and Easy Routings

CADLink offers a simple interface for creating and modifying Routing sequences on your SYSPRO ERP Structures or Estimates.

Eliminate Duplicate Manual Data Entries

Eliminate Duplicate Manual Data Entries

Single-step process eliminates duplicate manual data entries of engineering data.

One Click Summary Report

One Click Summary Report

Easily generate Excel file format exports for your Bills of Material and Change summary reports to meet your documentation requirements.

Powerful Searches

Powerful Searches

Search your SYSPRO ERP live and insert raw material items to your SYSPRO Structure/Estimate. Insert non-CAD items to create a complete BOM, not only what you modeled.

Small Footprint

Small Footprint

CADLink offers an easy installation and setup, and small footprint with minimum client machine hardware and software requirement. CADLink installation requires no additional database or server components.

Included Modules

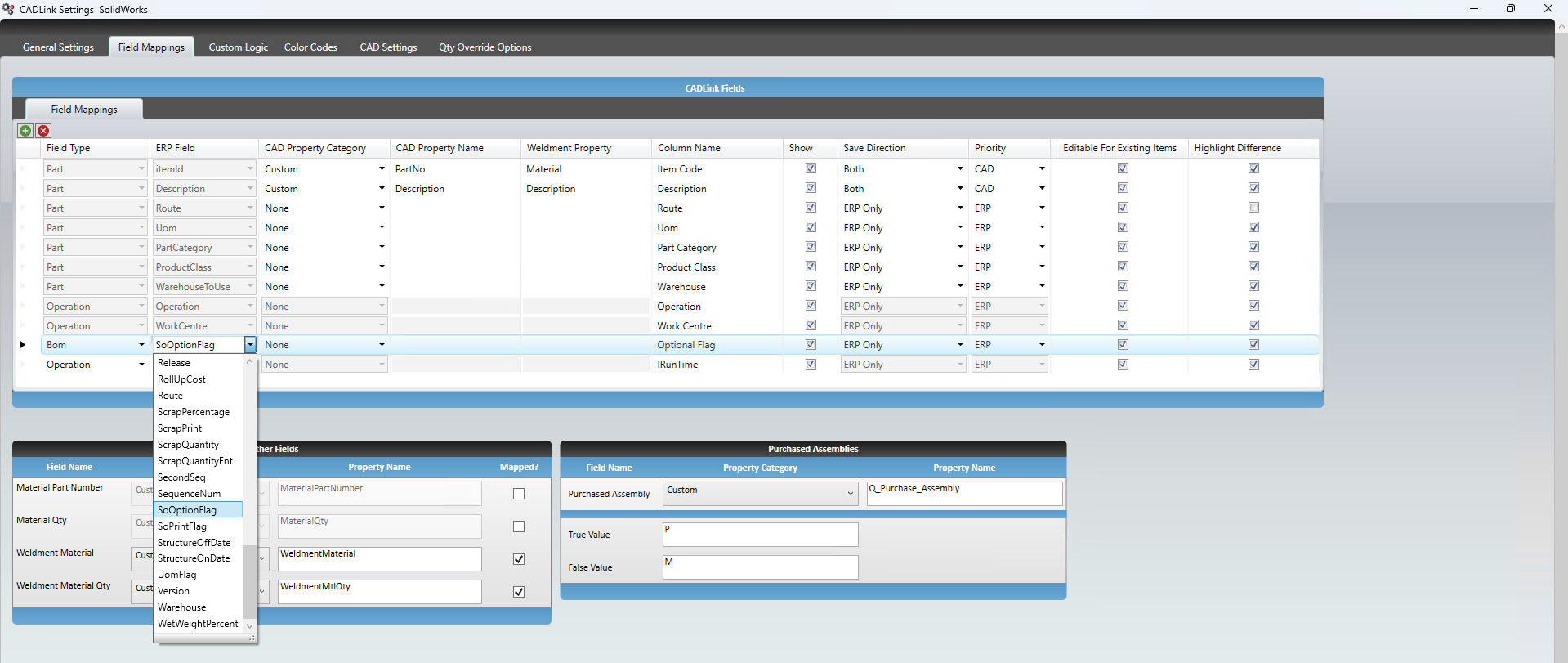

Extended Field Mapping Module

The Extended Field Mapping Module allow users to map to any field found within certain tables in SYSPRO ERP. CADLink Users are also able to use the Field Mapping Module to map various User Defined Fields (UDFs) existing in those tables.


SYSPRO CADLink - Field Mapping Module

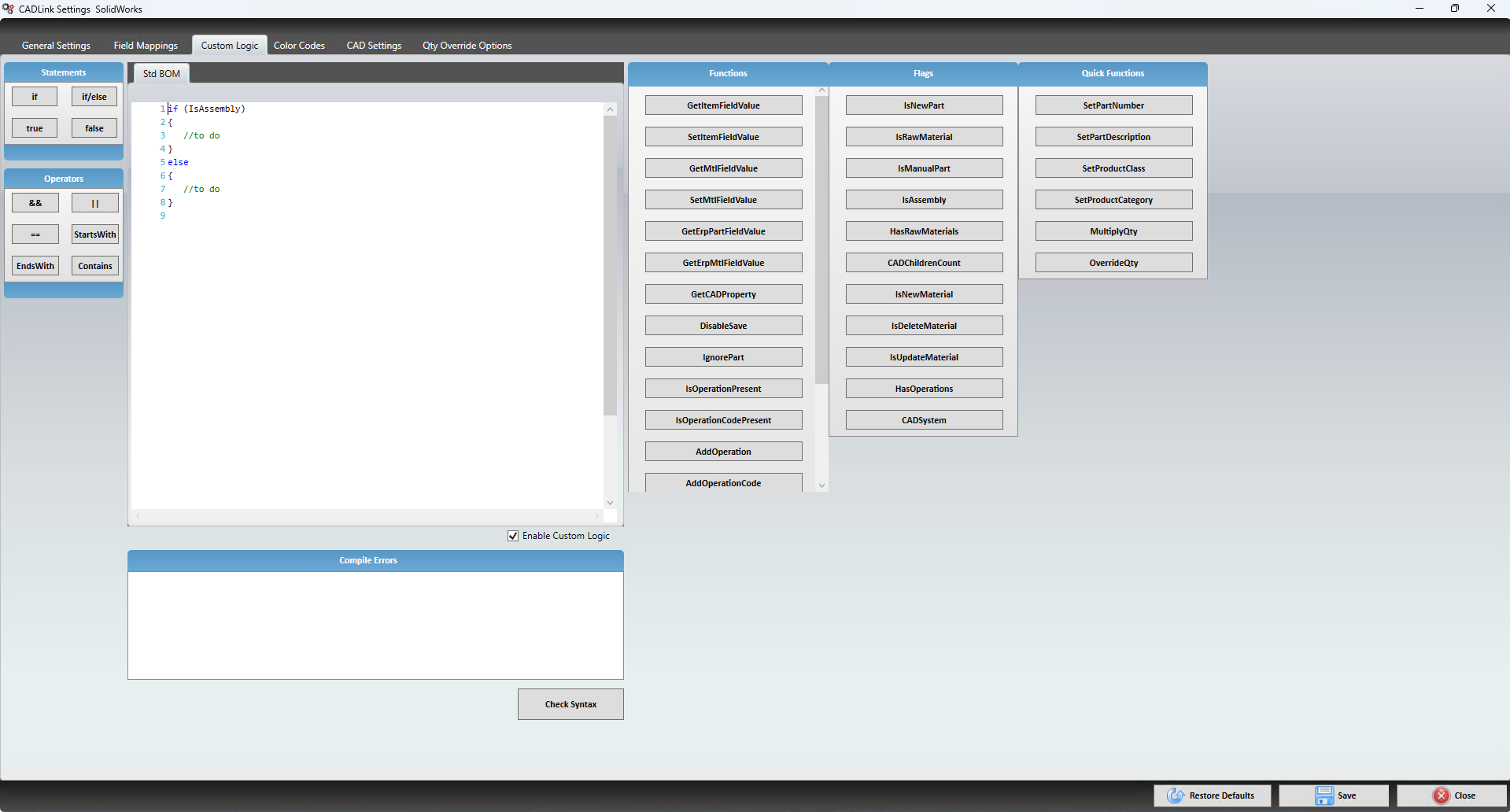

Custom Logic Module

CADLink’s Custom Logic Module allows a user to develop their own rules to set fields/values using C# code. This module assists your engineers by automatically entering data that can be defined by rulesets, saving time and making processes more efficient.


Syspro CADLink - Custom Logic Module
